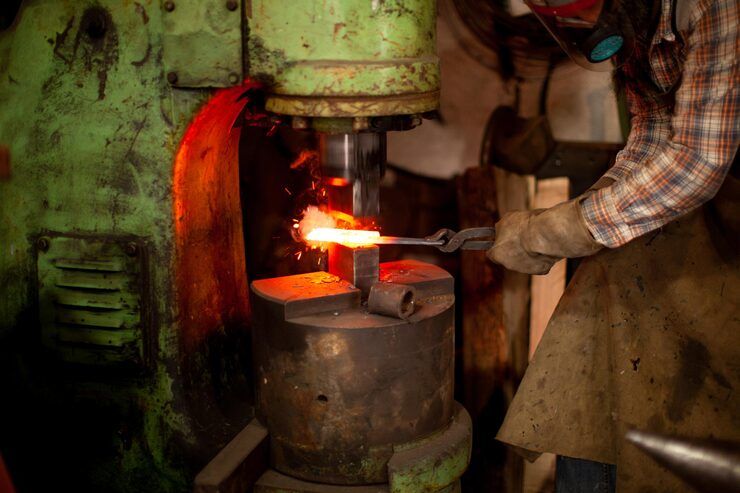

Industrial Forging Machines Guide: Equipment, Processes, and Industry Uses

Forging is not a new idea. It has been used for centuries. What has changed is the technology. Today, advanced machines like hydraulic forging press systems and automatic forging machine setups make the process faster, more precise, and consistent.

This guide explains how industrial forging machines work, their types, and where they are used. The goal is to make the topic simple and easy to understand.

Understanding the Concept

Forging is a process where metal is shaped using pressure. Instead of cutting or melting the material, the metal is compressed into the desired form. This improves strength because the internal grain structure of the metal becomes aligned.

Industrial forging machines apply controlled force to shape metal. These machines can handle high temperatures and large materials. The result is a strong, reliable component that can withstand heavy loads.

Common materials used in forging include:

• Steel
• Aluminum
• Copper
• Titanium

Each material behaves differently under pressure, so machines are designed to handle specific needs.

Key Types or Categories

There are several types of industrial forging machines. Each type is designed for specific applications and production scales.

Hydraulic Forging Press

A hydraulic forging press uses fluid pressure to apply force. It works slowly but with great control. This makes it ideal for large and complex parts.

Key features include:

• High precision
• Even pressure distribution
• Suitable for large components

Mechanical Forging Press

This type uses mechanical energy, often from a flywheel, to generate force. It works faster than hydraulic systems.

Best suited for:

• High-volume production
• Medium-sized parts

Automatic Forging Machine

An automatic forging machine is designed for efficiency. It performs multiple steps with minimal human input.

Advantages include:

• Consistent output
• Reduced manual effort
• Faster production cycles

Heavy Duty Forging Machines

Heavy duty forging machines are built for large-scale operations. They handle massive components used in industries like shipbuilding and energy.

Characteristics:

• Strong construction
• High force capacity
• Long operational life

Important Subsections

Open Die Forging

In open die forging, the metal is placed between flat or simple-shaped dies. The metal is not fully enclosed.

This method is used for:

• Large metal blocks
• Custom shapes

Closed Die Forging

Closed die forging uses molds that fully enclose the metal. The material takes the exact shape of the die.

Common uses include:

• Automotive parts
• Tools and hardware

Hot Forging vs Cold Forging

• Hot forging: Metal is heated before shaping. Easier to form and suitable for large parts.
• Cold forging: Done at room temperature. Offers better surface finish and precision.

How It Works

The forging process follows a series of steps. Each step is important for achieving the final shape and strength.

1. Material Selection
   The process begins with choosing the right metal based on the application.
2. Heating
   In hot forging, the metal is heated to make it easier to shape.
3. Positioning
   The metal is placed inside the forging machine.
4. Applying Force
   The machine applies pressure using a hydraulic forging press or another system.
5. Shaping
   The metal flows into the desired shape under pressure.
6. Cooling
   The part is cooled to stabilize its structure.
7. Finishing
   Extra material is removed, and the surface is refined.

This process ensures strong and reliable components.

Benefits and Advantages

Industrial forging machines provide several important advantages over other manufacturing methods.

• Improved Strength
  Forged parts are stronger because the grain structure aligns with the shape.
• Better Durability
  These components can handle stress, impact, and wear.
• Material Efficiency
  Less waste compared to cutting processes.
• Consistency
  Automatic forging machine systems produce uniform parts.
• Versatility
  Suitable for a wide range of industries and materials.

These benefits make forging a preferred choice for critical applications.

Real-World Examples or Applications

Forging is used in many industries. Here are some practical examples.

Automotive Industry

Forged parts are used in:

• Crankshafts
• Gears
• Connecting rods

These parts must handle high stress and temperature.

Construction Industry

Heavy duty forging machines produce:

• Structural components
• Fasteners
• Tools

These items need strength and reliability.

Aerospace Industry

Aircraft components require precision and strength. Forging is used for:

• Engine parts
• Landing gear components

Energy Sector

Forged components are used in:

• Turbines
• Pipelines
• Power equipment

These applications demand durability and performance.

Everyday Tools

Many tools used daily are forged, such as:

• Wrenches
• Hammers
• Cutting tools

These tools benefit from the strength of forged metal.

Important Factors to Understand

Before working with industrial forging machines, it is important to consider several factors.

Material Properties

Different metals react differently under pressure. Understanding material behavior helps achieve better results.

Temperature Control

In hot forging, temperature must be carefully managed. Too much heat can weaken the metal. Too little can make shaping difficult.

Machine Capacity

Each machine has a force limit. Heavy duty forging machines are needed for large components.

Tooling Design

The shape of the dies affects the final product. Proper design ensures accuracy and efficiency.

Maintenance

Regular upkeep keeps machines running smoothly and prevents unexpected downtime.

Future Trends and Industry Insights

The forging industry continues to evolve with new technologies and practices.

Automation and Smart Systems

Automatic forging machine setups are becoming more advanced. They use sensors and data to improve accuracy and efficiency.

Energy Efficiency

Modern machines are designed to use less energy while maintaining performance.

Advanced Materials

New alloys are being developed for better strength and lighter weight. Forging machines are adapting to handle these materials.

Digital Monitoring

Manufacturers now use digital tools to monitor machine performance. This helps improve productivity and reduce errors.

Sustainability

There is a growing focus on reducing waste and improving material usage. Forging already supports this by minimizing scrap.

Conclusion

Industrial forging machines are essential in modern manufacturing. They shape metal into strong, reliable components used across many industries.

From hydraulic forging press systems to automatic forging machine setups, each type serves a specific purpose. Heavy duty forging machines handle large-scale tasks, while smaller systems focus on precision.

The forging process improves strength, durability, and consistency. It supports industries like automotive, aerospace, and construction.

As technology advances, forging machines continue to improve. Automation, energy efficiency, and smart monitoring are shaping the future of this field.

Understanding how these machines work helps in appreciating their importance in everyday products and large-scale industrial applications.
